Buat teman catatan shifa yang ingin tahu kunci jawaban soal test sertifikasi networking CCNA 2 chapter 1 version 5.0. Kami sudah merangkumnya,berikut soal dan jawabannya.
1. What is one advantage of using the cut-through switching method instead of the store-and-forward switching method?
has a positive impact on bandwidth by dropping most of the invalid frames
makes a fast forwarding decision based on the source MAC address of the frame
has a lower latency appropriate for high-performance computing applications
provides the flexibility to support any mix of Ethernet speeds
2. A network designer must provide a rationale to a customer for a design which will move an enterprise from a flat network topology to a hierarchical network topology. Which two features of the hierarchical design make it the better choice? (Choose two.)
reduced cost for equipment and user training
less required equipment to provide the same performance levels
simpler deployment for additional switch equipment
easier to provide redundant links to ensure higher availability
lower bandwidth requirements
3. What are two advantages of modular switches over fixed-configuration switches? (Choose two.)
availability of multiple ports for bandwidth aggregation
lower forwarding rates
need for fewer power outlets
lower cost per switch
increased scalability

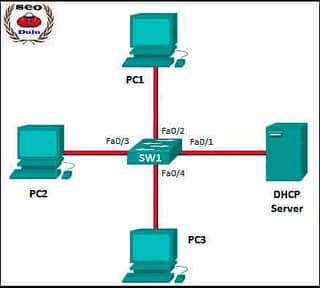

4.
Refer to the exhibit. Consider that the main power has just been restored. PC1 asks the DHCP server for IPv4 addressing. The DHCP server sends it an IPv4 address. While PC2 is still booting up, PC3 issues a broadcast IPv4 DHCP request. To which port will SW1 forward this request?
to Fa0/1, Fa0/2, and Fa0/4 only
to Fa0/1, Fa0/2, Fa0/3, and Fa0/4
to Fa0/1 and Fa0/2 only
to Fa0/1, Fa0/2, and Fa0/3 only
to Fa0/1 only
5. What is one function of a Layer 2 switch?
forwards data based on logical addressing
learns the port assigned to a host by examining the destination MAC address
duplicates the electrical signal of each frame to every port
determines which interface is used to forward a frame based on the destination MAC address

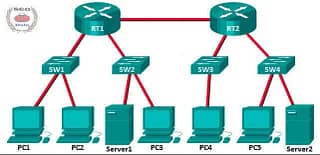

6.
Refer to the exhibit. Fill in the blank.
There are ” 12 ” collision domains in the topology.
7. What is a collapsed core in a network design?
a combination of the functionality of the access, distribution, and core layers
a combination of the functionality of the access and core layers
a combination of the functionality of the distribution and core layers
a combination of the functionality of the access and distribution layers
8. What are two reasons a network administrator would segment a network with a Layer 2 switch? (Choose two.)
to enhance user bandwidth
to eliminate virtual circuits
to create more broadcast domains
to isolate traffic between segments
to isolate ARP request messages from the rest of the network
to create fewer collision domains

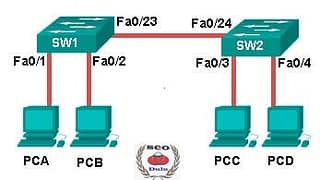

9.
Refer to the exhibit.
How is a frame sent from PCA forwarded to PCC if the MAC address table on switch SW1 is empty?
SW1 forwards the frame directly to SW2. SW2 floods the frame to all ports connected to SW2, excluding the port through which the frame entered the switch.
SW1 floods the frame on all ports on the switch, excluding the interconnected port to switch SW2 and the port through which the frame entered the switch.
SW1 floods the frame on all ports on SW1, excluding the port through which the frame entered the switch.
SW1 drops the frame because it does not know the destination MAC address.

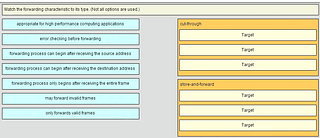

10.
Place the options in the following order:
Cut-through
- appropriate for high performance computing applications
- forwarding process can begin after receiving the destination address
- may forward invalid frames
Store-and-forward
- error checking before forwarding
- forwarding process only begin after receiving the entire frame
- only forward valid frames
11. What is a basic function of the Cisco Borderless Architecture distribution layer?
aggregating Layer 3 routing boundaries
aggregating all the campus blocks
acting as a backbone
providing access to the user
12. ABC, Inc. has about fifty hosts in one LAN. The administrator would like to increase the throughput of that LAN. Which device will increase the number of collision domains and thereby increase the throughput of the LAN?
hub
host
NIC
switch
13. What does the term “port density” represent for an Ethernet switch?
the numbers of hosts that are connected to each switch port
the speed of each port
the memory space that is allocated to each switch port
the number of available ports
14. Which type of transmission does a switch use when the destination MAC address is not contained in the MAC address table?
anycast
unicast
broadcast
multicast
15. What is a basic function of the Cisco Borderless Architecture access layer?
aggregates Layer 3 routing boundaries
provides high availability
aggregates Layer 2 broadcast domains
provides access to the user
16. What information is added to the switch table from incoming frames?
source MAC address and incoming port number
destination MAC address and incoming port number
destination IP address and incoming port number
source IP address and incoming port number
17. Fill in the blank.
A “ converged ” network is one that uses the same infrastructure to carry voice, data, and video signals.
18. An administrator purchases new Cisco switches that have a feature called StackPower. What is the purpose of this feature?
It enables many switches to be connected with a special fiber-optic power cable to provide higher bandwidth.
It enables the sharing of power among multiple stackable switches.
It enables many switches to be connected to increase port density.
It enables many switches to be physically stacked in an equipment rack.
It enables AC power for a switch to be provided from a powered patch panel.
19. Which switch form factor should be used when large port density, fault tolerance, and low price are important factors?
fixed-configuration switch
modular switch
stackable switch
rackable 1U switch

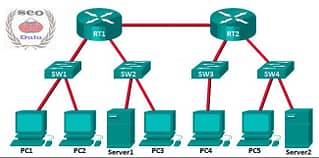

20.
Refer to the exhibit. Fill in the blank.
There are ” 5 ” broadcast domains in the topology.
Tambahan:
21. What tool is important to consider for use when making hardware improvement decisions about switches?
switched virtual interfaces
authentication servers
multilayer switching
traffic flow analysis
22. What is the maximum wire speed of a single port on a 48-port gigabit switch?
1000 Mb/s
48 Mb/s
48 Gb/s
100 Mb/s
23. When the installation of a network infrastructure is being planned, which technology will allow power to be provided via Ethernet cabling to a downstream switch and its connected devices?
PoE pass-through
Gigabit Ethernet
wireless APs and VoIP phones
PoE
24. Match the function to the corresponding switch type. (Not all options are used.)
Layer 2 switches
- typically used in the access layer of a switched network
- forward traffic based on information in the Ethernet header
Multilayer switches
- can build a routing table
- supports a few routing protocols
